Bow Gates

Introducing Arrow Cattle Gates, high-quality bow gates for any area of cattle corrals and cattle handling systems. Like our cattle corral panels, these bow gates are crafted with thoughtful features for easier, faster, and safer operation. Key features include hinges designed for little to no maintenance, progressive rails to prevent calves from sticking their heads out, and our unique No Miss Latch systems that ensure your gate catches securely every time.

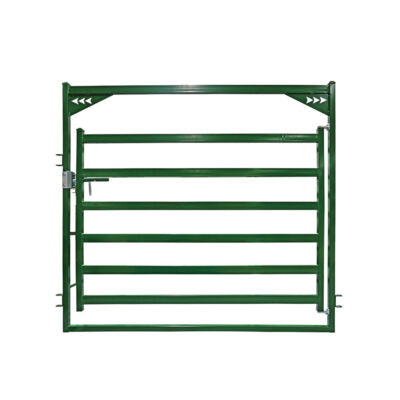

Arrow Elite Cattle Gates are available in 4', 8', and 10' bow gate sizes and you can choose from standard height or high bows, and the option of a Cowboy Latch, for working cattle on horseback. Arrow Pro Cattle Gates come in a 10' option. All gates open wide, with a range of nearly 360°, allowing them to be used at any point in your system effectively.

Whether you are looking for a single bow gate to replace one that is broken, or are ready to take on a full cattle handling system overhaul, these bow gates are up to any task you throw at them. Upgrade your yard with a gate that is built to last with an easy-to-use, heavy-duty Arrow Cattle Gate. Backed by our exclusive industry-leading warranty.

Product Specifications

High-quality bow gates for cattle yards and cattle handling systems
No miss two-way striker plate and spring-loaded slam latch on high-pressure gates close securely

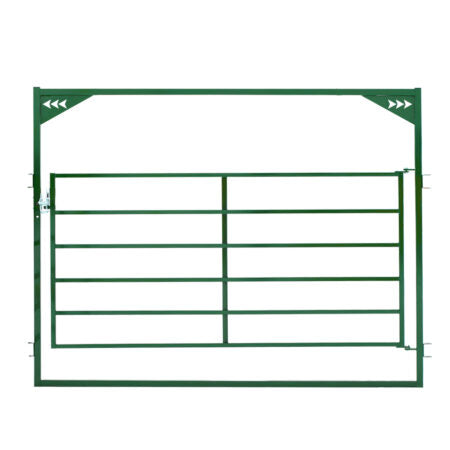

Two-way bolt latch on low-pressure gates ensures secure closure
Arrow Elite bow gate hinges feature poly bushings to prevent seizing, swing a full 360°
Arrow Pro bow gate bolt hinges, swing a full 360°

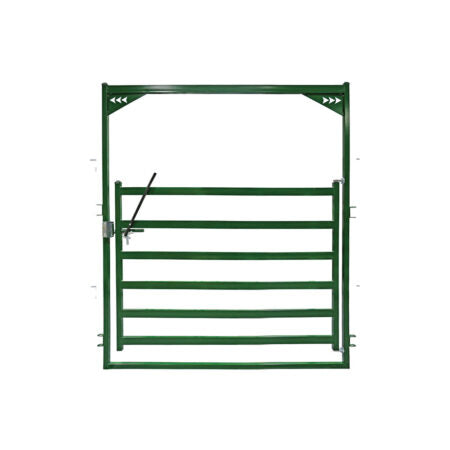

Option of high-pressure high bow gates for use on horseback
Rectangular and square provide a large visual barrier
Progressively spaced rails deter calves from sticking their heads through
Rectangular and square tubing provide a broad, even surface area for impact, and drastically reduce bruising
16 gauge steel posts
13 gauge steel rails
Built with locally sourced US and Canadian steel
Arrow Pro gate features a continuous, one-piece angle iron stay for added strength
Unique 4-way pin connectors offer flexibility for cattle handling system design
Can be used to craft full cattle handling systems or simply replace broken pieces of your current setup
Cattle panel clips and pins included
Semi-permanent bow gates that can be moved at any time to suit your system as it changes
Pair perfectly with Arrowquip's cattle panels for a custom design
Arrow Pro Cattle Gates are backed by Arrowquip’s 5-Year Warranty
Arrow Elite Cattle Gates are backed by Arrowquip’s Lifetime Warranty
